Installing the Heatsink/Fan

The next step is to install the heatsink/fan combination (a typical heatsink and fan are shown in Figure 29). Before we do, however, let’s explore why cooling is essential.

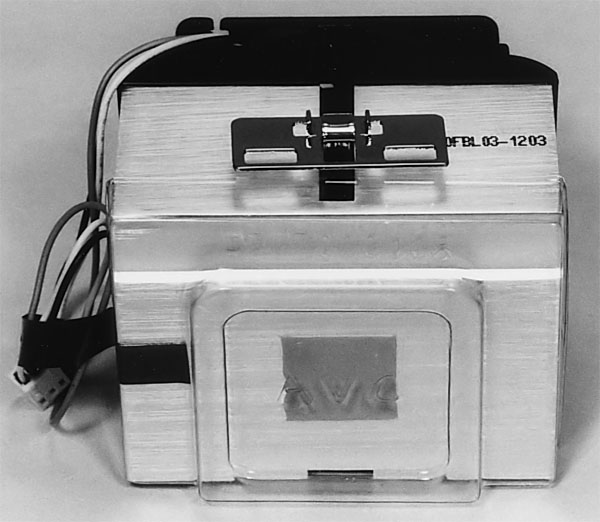

Figure 29: Heatsink and fan

Notice the thermal material at the bottom of the heatsink. This thermal material will touch the die of the CPU.
