Reinstalling the 3.5” Drive Cage

With the jumpers properly set and the hard drive screwed into the cage, we can insert the cage back into the case and turn our attention to the 5.25" drives (Figure 82).

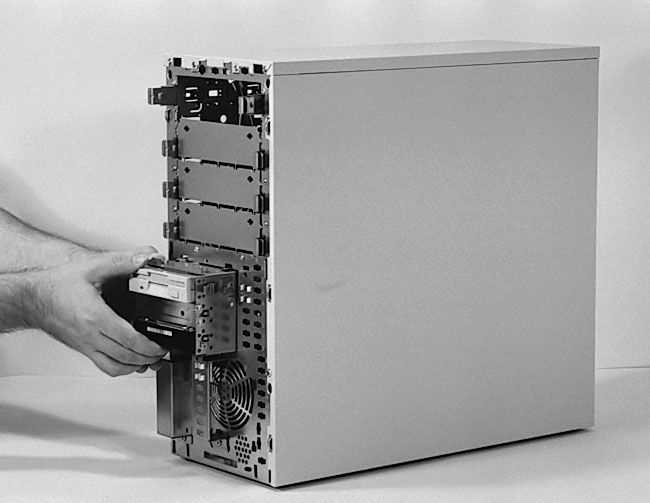

Figure 82: Inserting the full 3.5” drive cage into the PC case.
