Wide (68-Conductor) Single-Ended Cables, Connectors and Signals

Wide (68-Conductor) Single-Ended Cables, Connectors and Signals

Wide cables are used for wide (16-bit) SCSI transfer modes. These are also sometimes called 68-conductor or 68-pin cables after the number of wires in the cable or pins in its connectors, respectively. Wide cables are formally called "P" cables in the SCSI standards, though there are several different types of "P" cables.

Note: Wide SCSI was defined in the SCSI-2 standard, many years after narrow SCSI was already established. The first wide SCSI implementations were designed to use a 68-pin "B" cable in combination with the regular narrow "A" cable. This combination was cumbersome and expensive, and very unpopular in the hardware industry. The "P" cable replaced the "A+B" combination and is now the standard for wide SCSI implementations.

Wide SCSI uses 68 signals, carried on the 68 conductors in the cable. These are organized into 34 pairs of two wires each. For single-ended SCSI, each pair generally consists of a signal and a signal return, which is the same as a ground line. The numbering of the signals is different for the cable conductors and the connector pins, though fortunately there is only one set of pin numbers, unlike narrow SCSI (see the narrow SCSI cable description for more). Here are the signals and numbering conventions for wide SCSI:

Signal	Pin #	Cable Conductor #		Pin #	Signal
SIGNAL RETURN	1	1	2	35	-DB(12)
SIGNAL RETURN	2	3	4	36	-DB(13)
SIGNAL RETURN	3	5	6	37	-DB(14)
SIGNAL RETURN	4	7	8	38	-DB(15)
SIGNAL RETURN	5	9	10	39	-DB(P1)
SIGNAL RETURN	6	11	12	40	-DB(0)
SIGNAL RETURN	7	13	14	41	-DB(1)
SIGNAL RETURN	8	15	16	42	-DB(2)
SIGNAL RETURN	9	17	18	43	-DB(3)
SIGNAL RETURN	10	19	20	44	-DB(4)
SIGNAL RETURN	11	21	22	45	-DB(5)
SIGNAL RETURN	12	23	24	46	-DB(6)
SIGNAL RETURN	13	25	26	47	-DB(7)
SIGNAL RETURN	14	27	28	48	-P_CRCA
GROUND	15	29	30	49	GROUND
GROUND	16	31	32	50	GROUND
TERMPWR	17	33	34	51	TERMPWR
TERMPWR	18	35	36	52	TERMPWR
(reserved)	19	37	38	53	(reserved)
GROUND	20	39	40	54	GROUND
SIGNAL RETURN	21	41	42	55	-ATN
GROUND	22	43	44	56	GROUND
SIGNAL RETURN	23	45	46	57	-BSY
SIGNAL RETURN	24	47	48	58	-ACK
SIGNAL RETURN	25	49	50	59	-RST
SIGNAL RETURN	26	51	52	60	-MSG
SIGNAL RETURN	27	53	54	61	-SEL
SIGNAL RETURN	28	55	56	62	-C/D
SIGNAL RETURN	29	57	58	63	-REQ
SIGNAL RETURN	30	59	60	64	-I/O
SIGNAL RETURN	31	61	62	65	-DB(8)
SIGNAL RETURN	32	63	64	66	-DB(9)
SIGNAL RETURN	33	65	66	67	-DB(10)
SIGNAL RETURN	34	67	68	68	-DB(11)

Note: "-P_CRCA" was "-DB(P0)" (parity zero) before the introduction of CRC.

The numbering of the conductors alternates between the left column of signal returns and the right column of signals, facilitating the creation of matched pairs within the cable, and also allowing for the creation of "partially twisted pair" LVD cables. The pins are numbered sequentially down the left column, and then the right column. This probably facilitates manufacturing in some way.

In practical terms, the following are the most common "P" cables used in the PC world for single-ended wide SCSI:

External High Density Cables: The older style of external wide cables uses the larger high density connector.
External Very High Density Cables: The newer style of external wide cables uses the very high density (VHDCI) connector. It is most common with the newest devices (though typically, VHDCI cables use LVD, not single-ended signaling.)
Internal High Density Cables: Only one general type of internal wide cable is used for single-ended signaling, a 68-wire ribbon cable with high density connectors.

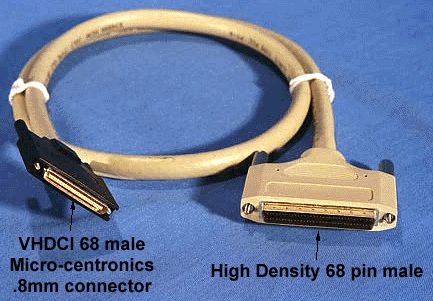

Above, an external wide cable that has one high density

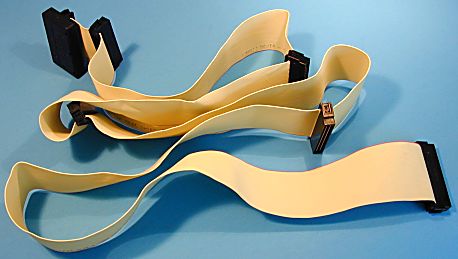

connector and one very high density connector. Below, an
internal wide cable with five high density connectors. Note the
integrated terminator on the internal connector (upper left).

Top image � Computer Cable Makers, Inc.
Image used with permission.

As with narrow SCSI, the choice of external cable depends on the requirements of the hardware being used. There are cables available that have mixed connector types for special requirements, and also many kinds of adapters. Note that high-end SCSI now uses LVD, so LVD cables are required, which are similar in some ways to single-ended "P" cables, yet different. ;^) They are also, unfortunately, called "P" cables, so watch out for that! Note also that some wide SCSI implementations use single connector attachment (SCA) instead of discrete cables.
